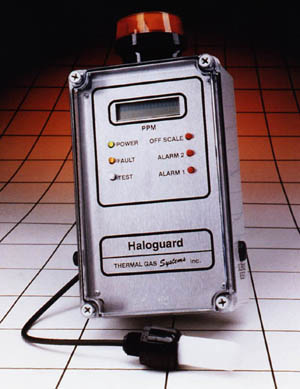

Haloguard Low Cost 24-hour Leak Notification for Refrigeration Systems Refrigerant Leakhguard Detection and Monitoring Systems

HALOGUARD ® is the cost effective, reliable way to reduce costly refrigerant leakage. With a HALOGUARD ® leak monitor installed, you quickly know where the leak is located and how much refrigerant you are losing. This exclusive early warning system detects leaks in a designated area and flashes a bright red LED when parts-per million (PPM) reaches the alarm level you preset. With a dialer or other remote signal hookup, maintenance personnel will know immediately when and where a leak occurs. Repairs can be made quickly, before you lose costly refrigerant or perishable products. An optional analog output is available to interface with EMS/BMS systems.


  • Simple installation, easy field calibration
  • Remote sensor with 6 ft. instrument cable and DIN plug, extendable to 300 ft.
  • Audible alarm
  • LCD shows PPM Concentration, Alarm, Test, Reset Sensor Fault and Low Battery
  • 2 user alarms adjustable between 10 -100% of scale
  • Off-scale alarm
  • Three flashing alarm LEDs
  • Sensor Fault LED
  • Power On/Off LED
  • Four alarm relays for ventilation, dialer or remote notification
  • Alarm Test and Reset push buttons
  • Rugged NEMA 4/12 plastic enclosure
  • Dependable, solid-state electronics

optionsOptions & Accessories

  • Strobe light alarm
  • Analog output for BAS/EMS interface or data logging
  • Gas test kit
  • Battery back-up
  • Automatic calibration


Technology CMOS
Electrical Supply 115-230v, 50-60 Hz
Output Signal Std: 4x3A, dry contact
Opt: 0-10VDC or 4-20mA analog
Accuracy 10% Full-scale
Response Time <1 minute
Recovery Time <3 minutes
Sensor Life +5 years
Measuring Range 0-1000 ppm CFC, HFC, HCFC (except R123),
0-300 ppm R123
Operating Temperature:
Sensor -20°F to +110°F non-condensing
Controller 0°F to +120°F non-condensing
Enclosure: NEMA 4/12 design
Sensor PVC and porous PP filter
Weight 6 lbs. (add 4 lbs. for optional battery back-up)

Warranty (click for details)

Haloguard is unconditionally guaranteed for one year from the date of shipment. Any device found defective in that period will be replaced free of charge.
