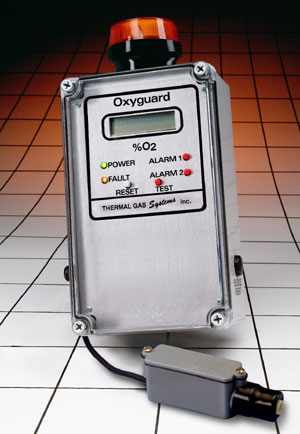

Oxyguard – Oxygen Depletion Monitor
Oxyguard Economical, Maintenance-free Oxygen Depletion Monitor
OXYGUARD® combines the economy of a galvanic cell with a highly efficient electrolyte for a virtually maintenance-free monitor with a sensor life of more than five years under normal conditions.
With OXYGUARD®, there is no influence from CO 2 ,CO,H 2 S, NO X ,SO 2 or H 2 . The monitor operates in normal ambient temperatures with a very stable output signal.
Simply install OXYGUARD® and it is ready to go to work. Warm-up time and field recalibration are minimal.
When you require continuous oxygen monitoring for refrigeration equipment, machinery rooms, medical imaging systems, oxygen incubators or food storage rooms,you can depend on the OXYGUARD® for effective, economical operation.
- Simple installation
- Easy field calibration
- Audible alarm
- Dual alarm capability
- LCD shows %Oxygen, Alarm Test, Reset, Sensor Fault and Low Battery
- Two flashing alarm LEDs
- Sensor fault LED
- Power on/off LED
- Analog output for BAS/EMS interface or data logging
- Two alarm relays for ventilation, dialer or remote notification
- Alarm Test and Reset push buttons
- Rugged ABS enclosure
- Remote sensor with 6 ft.instrument cable and DIN plug, extendable to 200 ft.
- Dependable, solid-state electronics
Options & Accessories
- Remote sensor extension cable
- Battery back-up
- Gas test kit
- Lockable enclosure
|Electrical Supply||115-230v, 50-60 Hz|
|Output Signal||Std: 2x3A, dry contact
Opt: 0-10VDC or 4-20mA analog
|Response Time||<1 minute|
|Recovery Time||<3 minutes|
|Sensor Life||+5 years at 20°C/20% O2|
|Measuring Range||0-25% standard|
|Sensor||40°F to +110°F non-condensing|
|Controller||0°F to +120°F non-condensing|
|Enclosure:||ABS plastic, UL94V-0, NEMA 4/12/13 rated|
|Sensor||PVC and porous PP filter|
|Weight||5 lbs. (add 4 lbs. for optional battery back-up)|
Sensor element is unconditionally guaranteed for three years from the date of shipment. Any sensors found defective in that period will be replaced free of charge. Read terms and conditions of sale for complete warranty information.
